  • MTL4500 – Oddeľovače Ex(i)

    Určeno do prostředí s nebezpečím výbuchu - Ex

    Iskrovo bezpečné galvanické oddeľovače, Montáž na dosku (backplane)

    Krajina pôvodu - Krajina pôvodu
    Krajina pôvodu

    Eaton-MTL špecialista

    Michal Labanič | +421 907 742 745 | mlabanic@dex.sk

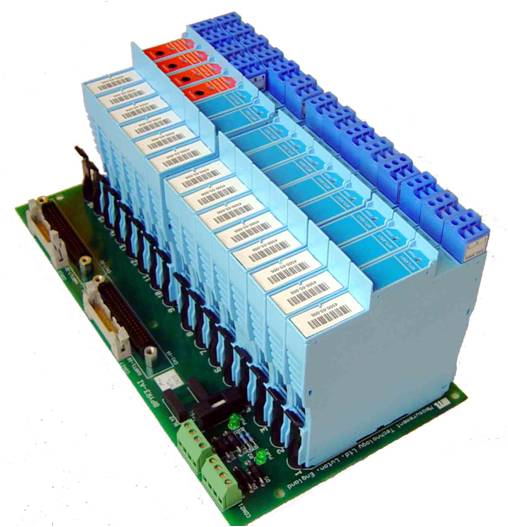

    Zdokonaliť všeobecne uznávaný a úspešný „priemyselný štandard“ MTL4000 nebola pre MTL ľahká úloha. Napriek tomu prinášajú nové oddeľovače MTL4500 celý rad vylepšení. Táto rodina oddeľovačov zabezpečuje jednoduchú a spoľahlivú integráciu vstupno-výstupných častí riadiacich systémov významných dodávateľov DCS.

    MTL4500 (montáž na základné dosky, tzv. backplane) a MTL5500 (montáž na DIN-lištu) vychádzajú z rovnakej konštrukcie, líšia sa len v mechanickom upevnení a pripojení obvodov.

    Product Code Description Downloads
    intrinsically safe logo Symbol denotes that the equipment is suitable for use in hazardous area applications.
    fsm logo Symbol denotes that the product has been assessed for functional safety applications
    SM45-55-AI FSM Safety Manual – Analogue Input Modules Safety Manual
    SM45-55-AO FSM Safety Manual – Analogue Output Modules Safety Manual
    SM45-55-BI FSM Safety Manual – Binary Input Modules Safety Manual
    SM45-55-SAD FSM Safety Manual – Solenoid / Alarm Driver Modules Safety Manual
    SMx 531-82 FSM Safety Manual – Machine Monitor Interfaces Safety Manual
    1. Intro
    INA4500 MTL4500/4600 range Instructions for Safe Use Manual
    INM4500/4600 MTL4500/4600 range Instruction Manual Manual
    MTL4500-5500-ACC Backplanes, Enclosures & Accessories Datasheet
    MTL4500-5500-CS Common Specifications Datasheet
    MTL4500-5500-DS MTL4500-5500 range Data Set Datasheet
    2. Digital Input
    MTL4501-SR 1ch DI failsafe solid-state output + LFD alarm Datasheet
    MTL4504 1ch DI relay output + LFD alarm + phase reversal Datasheet
    MTL4510 4ch DI solid-state output Datasheet
    MTL4510B 4ch DI multifunction solid-state output Datasheet
    MTL4511 1ch DI relay output Datasheet
    MTL4513 2ch DI solid-state output Datasheet
    MTL4514D 1ch switch/prox input, dual output relay Datasheet
    MTL4514N 1 ch switch/prox detector, LFD, phase reversal Datasheet
    MTL4514_B 1ch DI relay output + LFD alarm Datasheet
    MTL4516 2ch DI relay output Datasheet
    MTL4516C 2ch DI with changeover relay output Datasheet
    MTL4517 2ch DI relay output + LFD alarm Datasheet
    3. Digital Output
    MTL4521 Loop powered solenoid driver Datasheet
    MTL4521L loop powered solenoid driver IIC Datasheet
    MTL4523 Solenoid driver with LFD Datasheet
    MTL4523L Loop powered solenoid driver + LFD Datasheet
    MTL4523R Solenoid driver with LFD Datasheet
    MTL4523V-VL Solenoid/Alarm driver with voltage control Datasheet
    MTL4524 Switch operated solenoid driver Datasheet
    MTL4524S Switch operated solenoid driver, 24V override Datasheet
    MTL4525 Switch operated solenoid driver low power Datasheet
    MTL4526 2ch switch operated relay Datasheet
    4. Analogue Input
    MTL4541 1ch 2/3 wire Transmitter repeater Datasheet
    MTL4541A 1ch Transmitter repeater, passive input Datasheet
    MTL4541AS 1ch Transmitter repeater, passive input, current sink Datasheet
    MTL4541B MTL4041B replacement Datasheet
    MTL4541P MTL4041P replacement Datasheet
    MTL4541S 1ch 2/3 wire Transmitter repeater, current sink Datasheet
    MTL4541T 2/3 wire Transmitter repeater Datasheet
    MTL4544 2ch 2/3 wire Transmitter repeater Datasheet
    MTL4544A 2ch Transmitter repeater, passive input Datasheet
    MTL4544AS 2ch Transmitter repeater, passive input, current sink Datasheet
    MTL4544B MTL4044 replacement Datasheet
    MTL4544D 2/3 wire transmitter repeater, dual output Datasheet
    MTL4544S 2ch 2/3 transmitter repeater, current sink Datasheet
    5. Analogue Output
    MTL4546 1ch 4-20mA smart isolating driver + LFD Datasheet
    MTL4546C 1ch 4-20mA smart isolating driver + oc LFD Datasheet
    MTL4546S 1ch 4-20mA HART isolating driver + LFD Datasheet
    MTL4546Y 1ch 4-20mA smart isolating driver + oc LFD Datasheet
    MTL4549 2ch 4-20mA smart isolating driver + LFD Datasheet
    MTL4549C 2ch 4-20mA smart isolating driver + oc LFD Datasheet
    MTL4549Y 2ch 4-20mA smart isolating driver + oc LFD Datasheet
    6. Temperature Input
    MTL4573 1ch Temperature converter, RTD / THC Datasheet
    MTL4575 1ch Temperature converter, RTD / THC with alarm Datasheet
    MTL4576-RTD 2ch Temperature converter, RTD Datasheet
    MTL4576-THC 2ch Temperature converter, THC Datasheet
    MTL4581 1ch mV/THC isolator for low-level signals Datasheet
    MTL4582B 1ch resistance isolator to repeat RTD signals Datasheet
    7. Pulse and Vibration
    MTL4531 1ch vibration probe interface Datasheet
    MTL4532 1ch pulse isolator, digital or analogue output Datasheet
    8. Fire and Smoke
    MTL4561 2ch loop-powered, for fire and smoke detectors Datasheet
    9. General
    MTL4599 Dummy isolator Datasheet
    MTL4599N General purpose feed-through module Datasheet
    • rýchla montáž a demontáž
    • vysoká hustota osadenia
    • jedno- a viackanálové moduly
    • trojstranné galvanické oddelenie s nízkou spotrebou
    • kompatibilita s predošlým radom MTL4000
