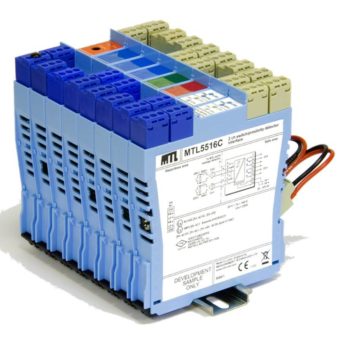

MTL5500 – Oddeľovače Ex(i)

Iskrovo bezpečné galvanické oddeľovače MTL5500, Montáž na DIN-lištu

Eaton-MTL

Rad MTL5500 sú univerzálne a jednoducho použiteľné iskrovo bezpečné galvanické oddeľovače. Používajú najnovšie technológie a pritom sú dostatočne odskúšané a overené.

Oddeľovače MTL5500 (montáž na DIN-lištu) a MTL4500 (montáž na základné dosky, tzv. backlany) majú takmer identické vnútorné zapojenie, líšia sa len v mechanickom upevnení a v spôsobe pripojenia vonkajších obvodov.

Product Code Description Downloads
intrinsically safe logo Symbol denotes that the equipment is suitable for use in hazardous area applications.
fsm logo Symbol denotes that the product has been assessed for functional safety applications
SM45-55-AI  FSM Safety Manual – Analogue Input Modules Safety Manual
SM45-55-AO  FSM Safety Manual – Analogue Output Modules Safety Manual
SM45-55-BI  FSM Safety Manual – Binary Input Modules Safety Manual
SM45-55-SAD  FSM Safety Manual – Solenoid / Alarm Driver Modules Safety Manual
SMx 531-82  FSM Safety Manual – Machine Monitor Interfaces Safety Manual
1. Intro
INA5500 MTL5500 range Instructions for Safe Use Manual
INM5500 MTL5500 range Instruction Manual Manual
MTL4500-5500-ACC Enclosures & Accessories Datasheet
MTL4500-5500-CS Common Specifications Datasheet
MTL4500-5500-DS MTL4500-5500 Series Data Set Datasheet
2. Digital Input
MTL5501-SR   1ch DI failsafe solid-state output + LFD alarm Datasheet
MTL5510 4ch DI solid-state ouput Datasheet
MTL5510B 4ch DI multifunction solid-state output Datasheet
MTL5511   1ch DI relay output Datasheet
MTL5513 2ch DI solid-state output Datasheet
MTL5514   1ch DI relay output + LFD alarm Datasheet
MTL5514-T 1-channel, line fault detection, phase reversal Datasheet
MTL5514D   1ch switch/prox input, dual output relay Datasheet
MTL5516C   2ch DI with changeover relay output Datasheet
MTL5517   2ch DI relay output + LFD alarm Datasheet
3. Digital Output
MTL5521   Loop powered solenoid driver, IIC Datasheet
MTL5521-T Loop powered solenoid driver, IIC Datasheet
MTL5522   Loop powered solenoid driver, IIB Datasheet
MTL5523   Solenoid driver with LFD Datasheet
MTL5523V – VL   Solenoid/Alarm driver with voltage control Datasheet
MTL5524   Switch operated solenoid driver Datasheet
MTL5525   Loop powered solenoid driver low power Datasheet
MTL5526 2ch switch operated relay Datasheet
4. Analogue Input
MTL5541   1ch 2/3 wire Transmitter repeater Datasheet
MTL5541A 1ch Transmitter repeater, passive input Datasheet
MTL5541AS 1ch Transmitter repeater, passive input, current sink Datasheet
MTL5541S   1ch 2/3 wire Transmitter repeater, current sink Datasheet
MTL5541S-T 4/20mA, HART®, 2- or 3-wire transmitters Datasheet
MTL5544   2ch 2/3 wire Transmitter repeater Datasheet
MTL5544A 2ch Transmitter repeater, passive input Datasheet
MTL5544AS 2ch Transmitter repeater, passive input, current sink Datasheet
MTL5544D   1ch 2/3 wire Transmitter repeater, dual output Datasheet
MTL5544S   2ch 2/3 wire Transmitter repeater, current sink Datasheet
5. Analogue Output
MTL5546   1ch 4-20mA smart isolating driver + LFD Datasheet
MTL5546Y   1ch 4-20mA smart isolating driver + oc LFD Datasheet
MTL5546Y-T 4–20mA HART® valve positioners with line fault detection Datasheet
MTL5549   2ch 4-20mA smart isolating driver + LFD Datasheet
MTL5549Y   2ch 4-20mA smart isolating driver + oc LFD Datasheet
6. Temperature Input
MTL5573 1ch Temperature converter, RTD / THC Datasheet
MTL5575 1ch Temperature converter, RTD / THC with alarm Datasheet
MTL5576-RTD 2ch Temperature converter, RTD Datasheet
MTL5576-THC 2ch Temperature converter, THC Datasheet
MTL5581 1ch mV/THC isolator for low-level signals Datasheet
MTL5582 1ch resistance isolator Datasheet
MTL5582B   1ch resistance isolator to repeat RTD signals Datasheet
7. Pulse and Vibration
MTL5531   1ch vibration probe interface Datasheet
MTL5532 1ch pulse isolator, digital or analogue output Datasheet
8. Fire and Smoke
MTL5561   2ch loop-powered, for fire and smoke detectors Datasheet
9. General
MPA5500 85 – 265V ac power adaptor Datasheet
MTL5051 Serial-data comms isolator Datasheet
MTL5053 Isolator/ power supply Datasheet
MTL5314 Trip Amplifier Datasheet
MTL5553 Isolator / Power Supply Datasheet
MTL5599 Dummy isolator Datasheet
PSG60E24RM 24V dc power supply (replaces MTL5991) Datasheet
  • kompaktné vyhotovenie pre montáž na DIN-lištu
  • vysoká hustota inštalácie
  • jedno- a viackanálové moduly
  • trojstranné galvanické oddelenie s nízkou spotrebou
  • kompatibilita s predošlým radom MTL5000



Katalóg MTL4500-5500  EN flag
Katalóg MTL4500-5500 – skrátená verzia CS Flag
Návod na inštaláciu MTL5500 EN flag
Bezpečnostné pokyny ATEX EN flag
EU  Vyhlásenie zhode EN flag
Návod na inštaláciu MTL5500 CS Flag
